Work Nears Completion on East Fairfield's CB - Continued.
VT-06-03

East Fairfield Bridge. Photo by Joe Nelson June 16, 2009

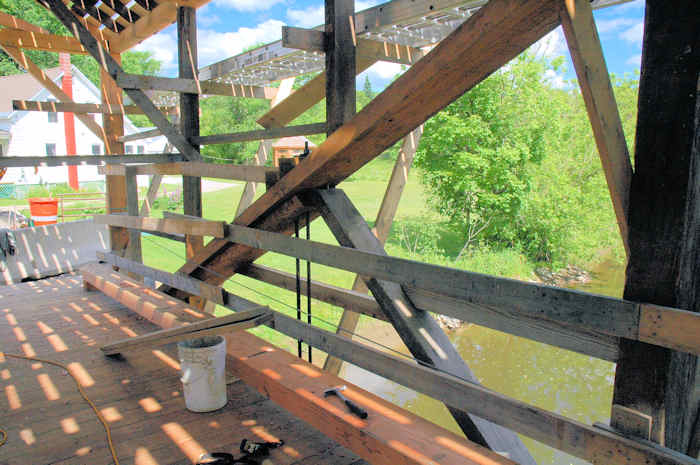

North-west queen post brace detail. The queen post and counterbrace are original fabric
Photo by Joe Nelson June 16, 2009
East Fairfield Bridge. Photo by Joe Nelson June 16, 2009

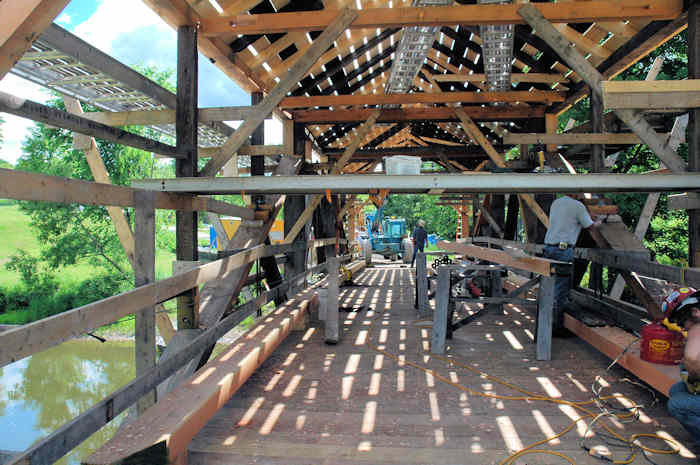

Interior looking east. Much of the clutter is temporary scaffolding and safety rails.
Photo by Joe Nelson June 16, 2009
East Fairfield Bridge. Photo by Joe Nelson June 16, 2009

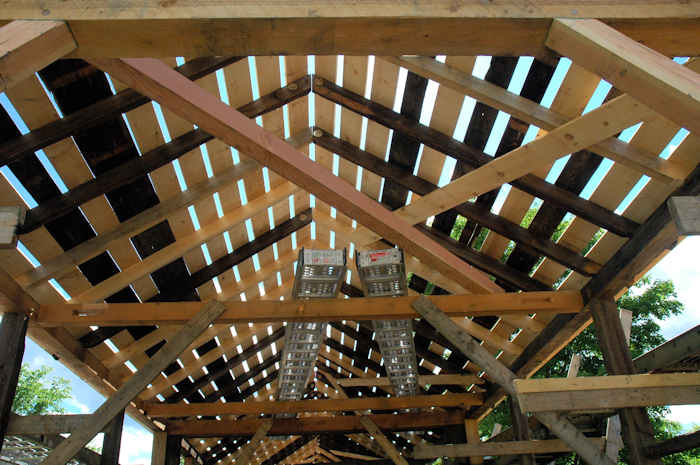

Note the mortises near the ends of the new tie-beam. The lateral bracing system is being upgraded and "X" bracing is being installed, not found in the original bridge. The dark wood is original fabric.
Photo by Joe Nelson June 16, 2009
