Return to Archive    Union Village Bridge Rehab in Progress

Thetford's Union Village Bridge Open to Traffic
(WGN 45-09-01)

Thetford, November 26, 2002 - The Union Village Bridge has been opened to traffic since 11/13/02 -

Thomas A. Chase, SE Regional Tech.,
Project Development, Construction Section,
Vermont Agency of Transportation,
tom.chase@state.vt.us 		Union Village Bridge Rehabilitation. Photo by Tom Chase, Nov.13, 2002

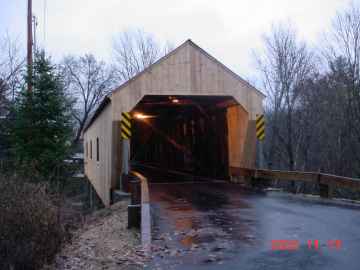

Union Village Bridge Open.
Photo by Tom Chase, Nov.13, 2002
Union Village Bridge Open. Photo by Tom Chase, Nov.13, 2002 Union Village Bridge Rehabilitation. Photo by Tom Chase, Nov.13, 2002

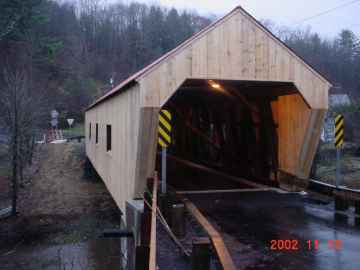

Union Village Bridge Open.
Photo by Tom Chase, Nov.13, 2002

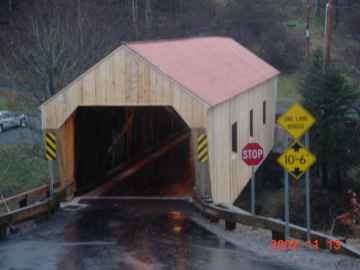

Union Village Bridge Open.
Photo by Tom Chase, Nov.13, 2002


Thetford's Union Village Bridge Rehab in Progress

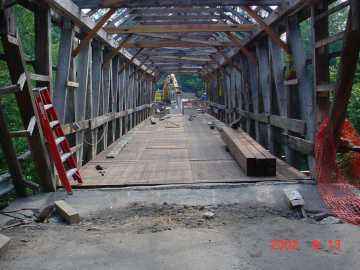

Union Village Bridge. Photo by Tom Chase 8/13/02
The Glulam decking is somewhat in place already. Three floor beams and four more short panels have to go in place after removing an oversize backwall on the far end -- Tom Chase
Photo by Tom Chase 8/13/02
"The general project description is: rehabilitation of the existing Union Village Covered Bridge and the addition of new glulam floor support beams on reinforced concrete foundations," explains Sue Scribner, Project Manager of VAOT's Historic Bridge Program.
       "Some specifics for member replacement include replacement of a portion of the bottom chord on both the north and south trusses as well as replacement of a few vertical members in each truss. The roof rafters will also need to be replaced. A new glulam deck will be installed on glulam stringers and floor beams. Of special note, a new copper roof will be installed as well as interior lighting.
       The low bid price was $609,213 and was submitted by Alpine Construction. The resident engineer is Tom Chase and the VTrans project manager is Warren Tripp.
       "The project is to be substantially completed in mid-September with traffic re-opened, although some work such as the roof installation and approach paving will not be completed and will be on-going. The project completion date is in mid-November.
       "Special funding for 100% of the project construction costs was received through the special efforts of Senator James Jeffords."

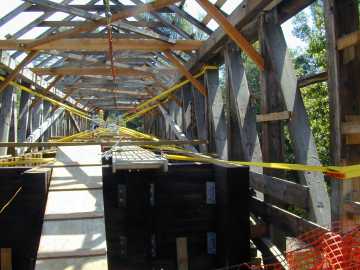

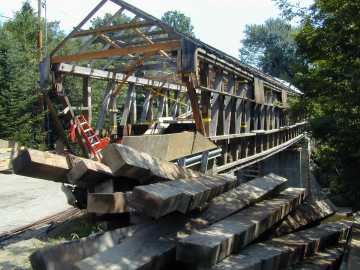

Union Village Bridge Rehabilitation. Photo by Joe Nelson, Aug.1, 2002 Union Village Bridge Rehabilitation. Photo by Joe Nelson, Aug.1, 2002
Union Village Bridge Rehabilitation.
Photo by Joe Nelson, Aug.1, 2002
Union Village Bridge Rehabilitation.
Photo by Joe Nelson, Aug.1, 2002

Return to top

Joe Nelson, P.O Box 267, Jericho, VT 05465-0267, jcnelson@together.net
This file posted August 15, 2002, updated November 29, 2002
