Creamery Bridge Reconstruction Progress - August 13
WGN 45-06-09
 |

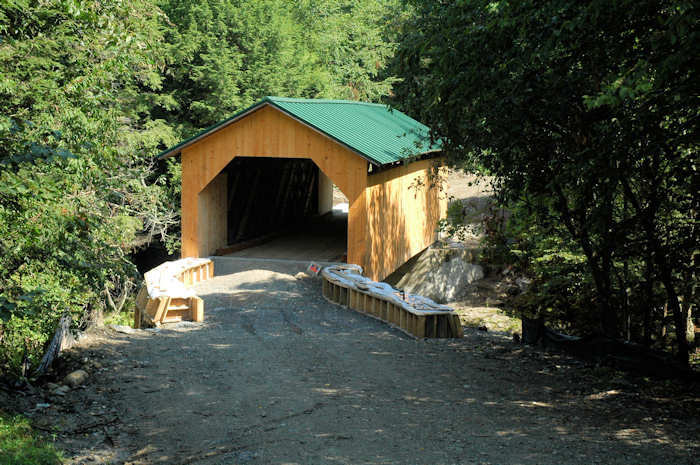

South Portal View - August 13, 2009
The work on the bridge and abutments is complete. The retaining walls for the road approach are cast and curing. The final step in the renovation will be construction of the approach roads. |
 |

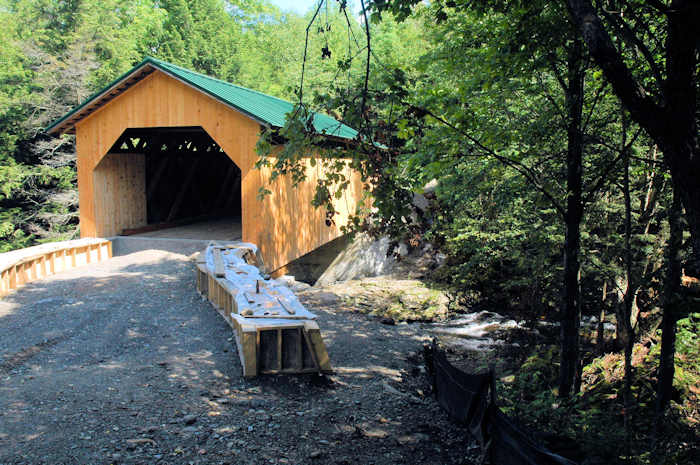

| View of the upstream side from the south. |
 |

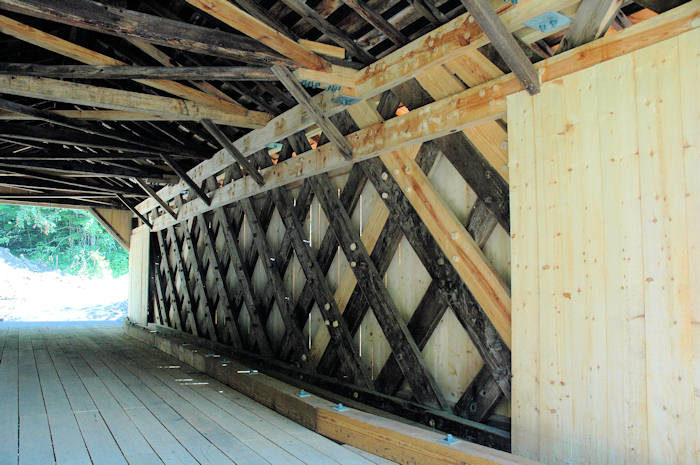

| View of the upstream truss |
 |

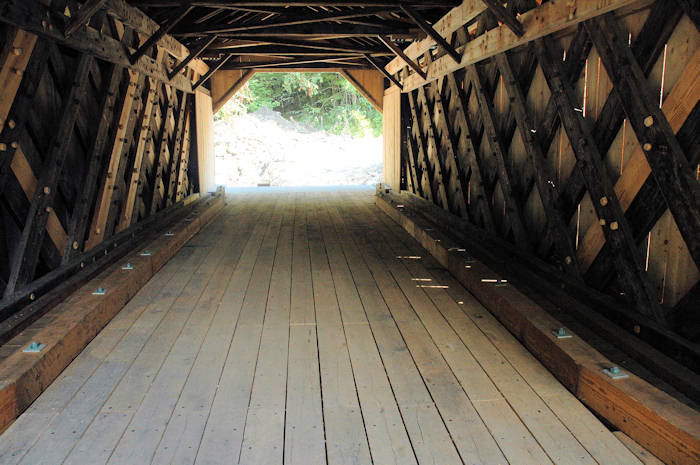

| View through the bridge from the south portal. |
 |

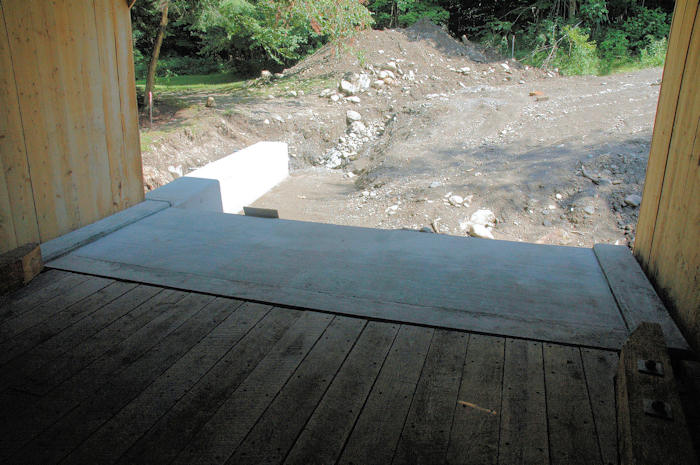

| North portal abutment back wall and roadway retainer wall. |
 |

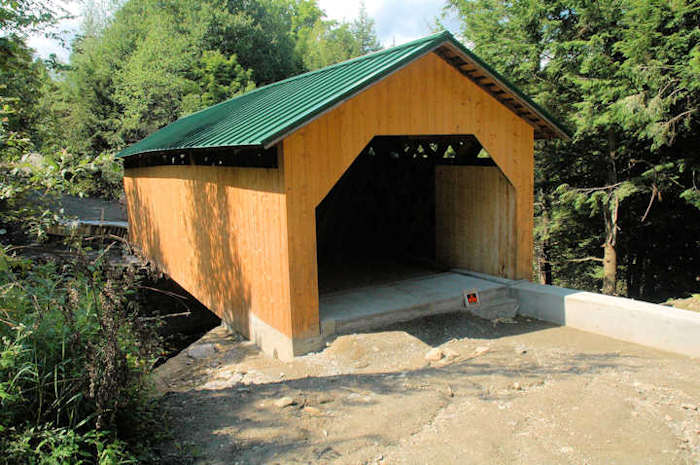

| North portal abutment back wall and roadway retainer wall and downstream side. |
 |

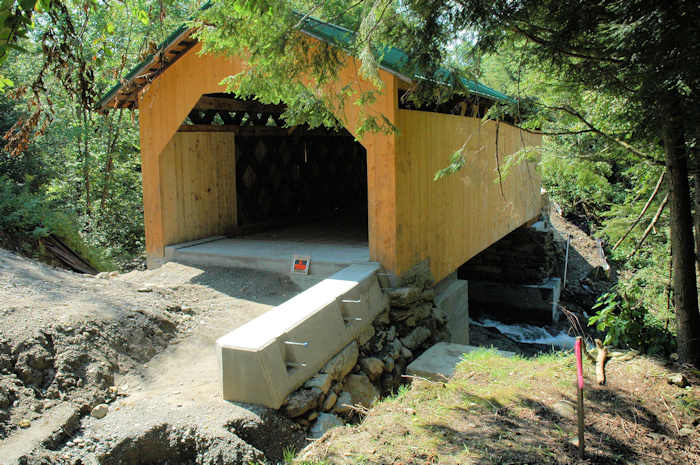

| North portal abutment back wall and roadway retainer wall and upstream side. |
