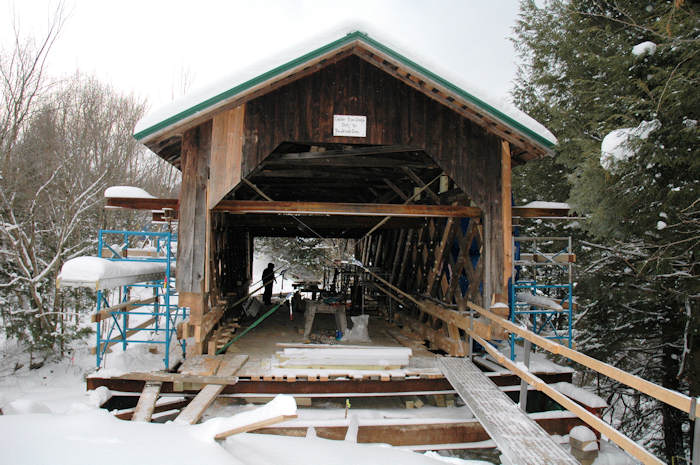

View of south portal.

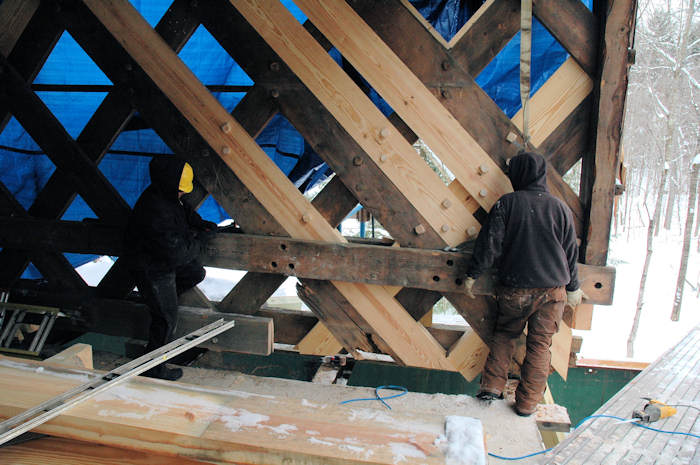

Sistering web members at south end of the east truss. Note the rotted end of the original web member.

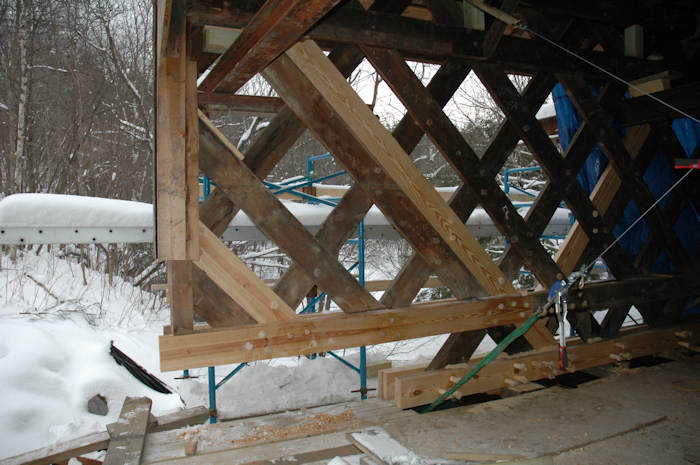

A view of the new members in the south end of the west truss.

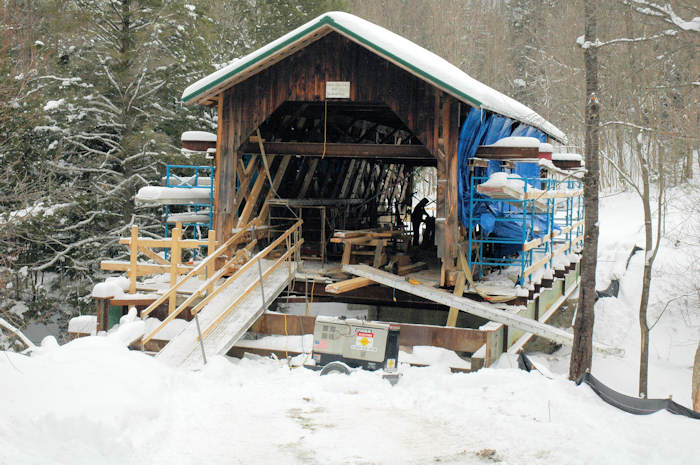

At the north portal.

The lower chords at the north end of the bridge were completely rotted away. Only the functioning members at the north ends of both trusses will be repaired. For details see Creamery Bridge Engineering Assessment above.

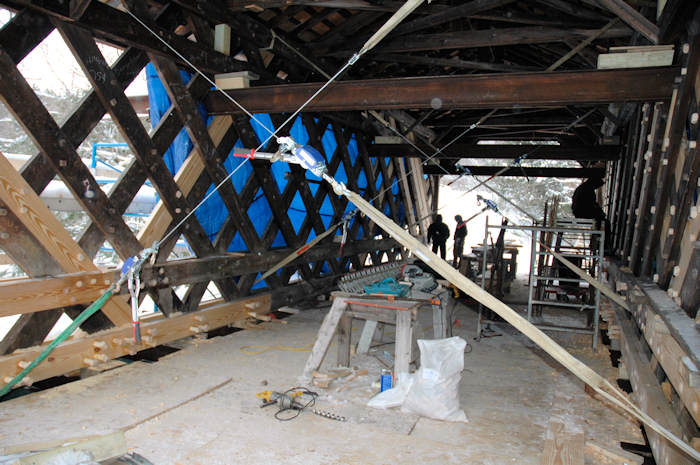

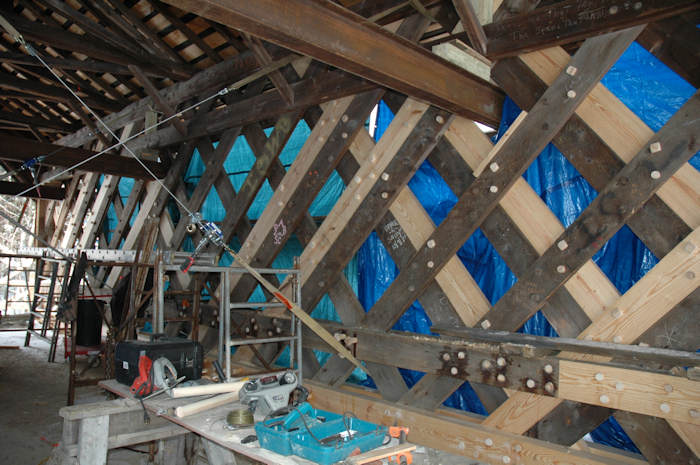

Notice the steel I-beam threaded through the web of the truss. In order to work on the truss members, the forces of compression and tension caused by dead and live load in them must be released. The contractor has done this by suspending the bridge by its upper chords. The block between the upper and secondary upper chord at the I-beam was inserted to allow both upper chords to share the weight of the bridge.

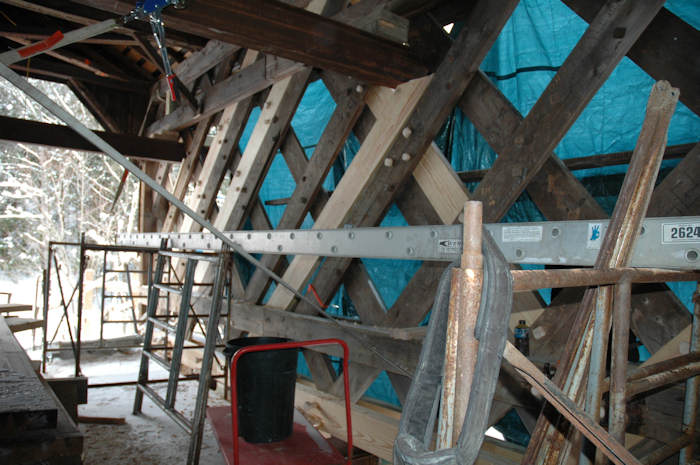

A view of the work done on the west truss.

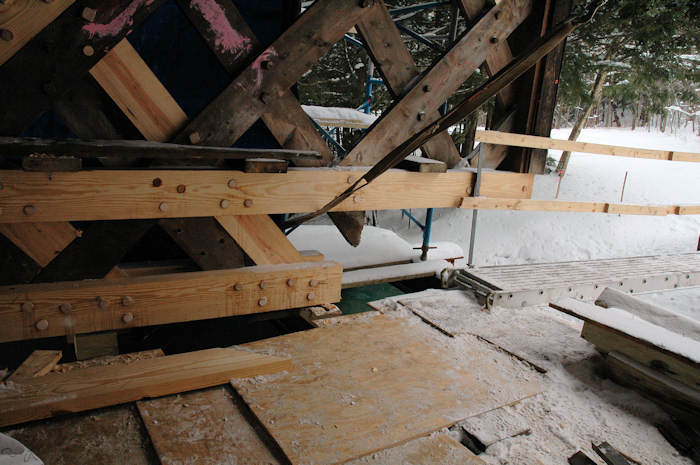

The north end of the west truss.

The north end of the east truss.

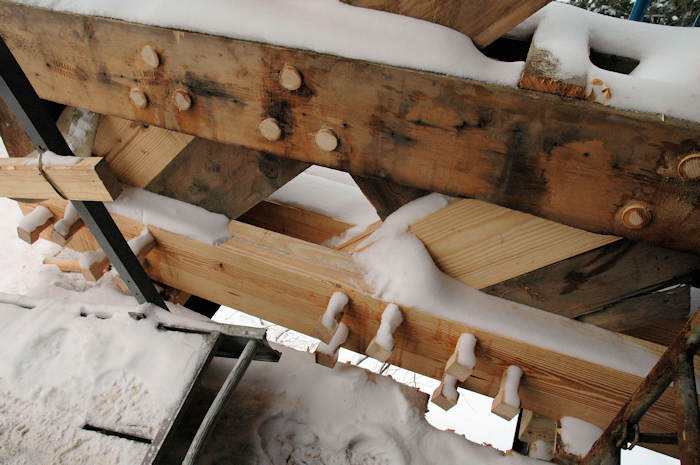

Some unset "trunnels." Work continues in a typical Vermont winter.
