South Portal View - April 9, 2009 The bridge roofing, siding, and superstructure is complete. Abutment and approach work remains to be done. Work is paused waiting for road conditions to allow heavy equipment access to the site.

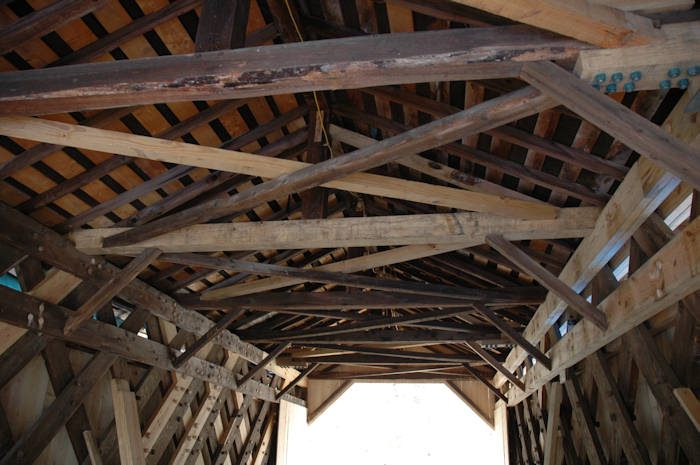

Viewing north through the bridge. Note the new upper chord members, the web sistering on the east truss, and the new tie beam. A strong effort has been made to keep original fabric, but some original members were found to be no longer able to function. See also the addition of curb rails, not part of the original design.

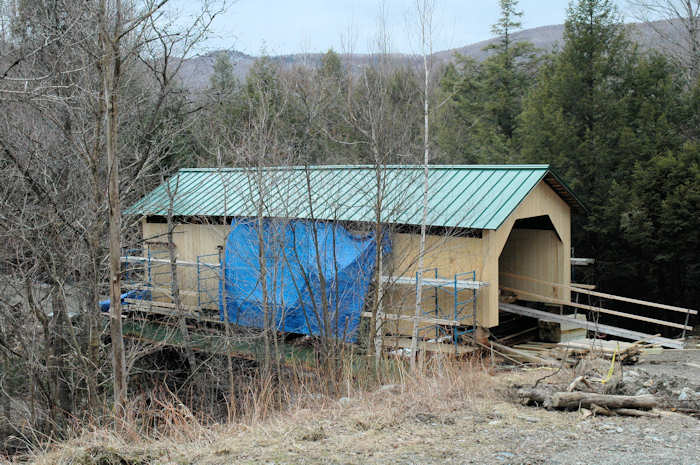

View of the bridge from the Hill West Road end (north) of Creamery Bridge Road. The new siding and roof replace elements that have been renewed often since the original build.

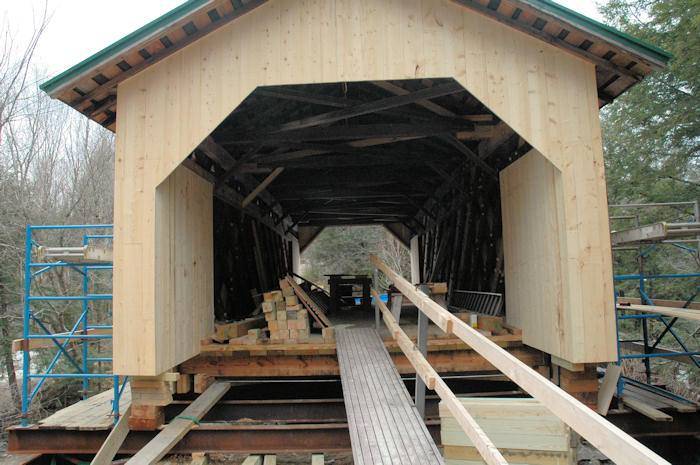

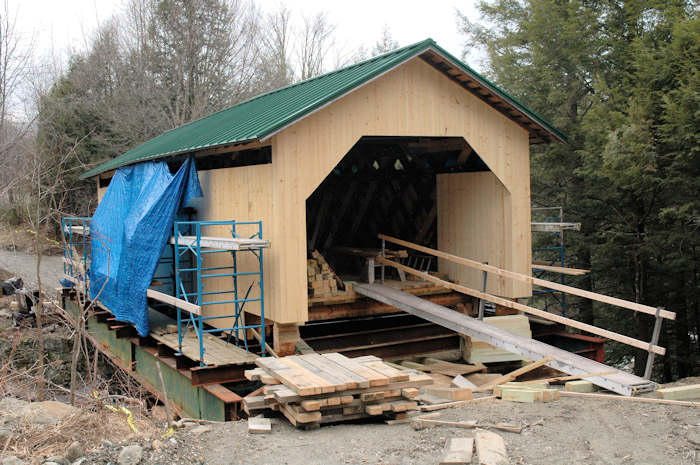

View of renewed north portal

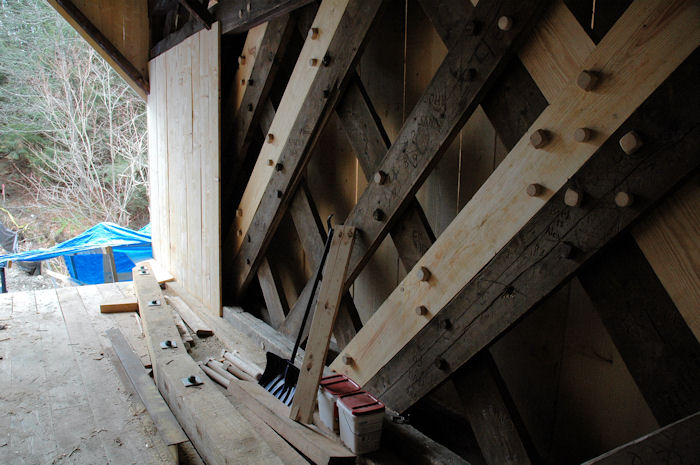

At the north end, the lower chords end at the abutment back-wall while the lower secondary chords continue to the original end post.

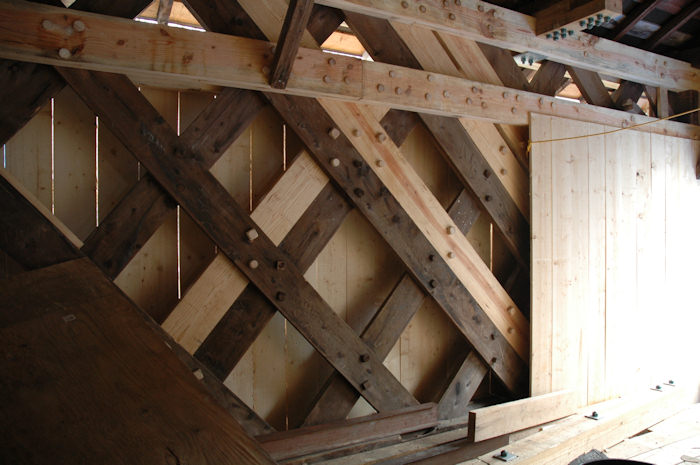

View of web member sistering at the north end of the east truss.

South end of the east truss.

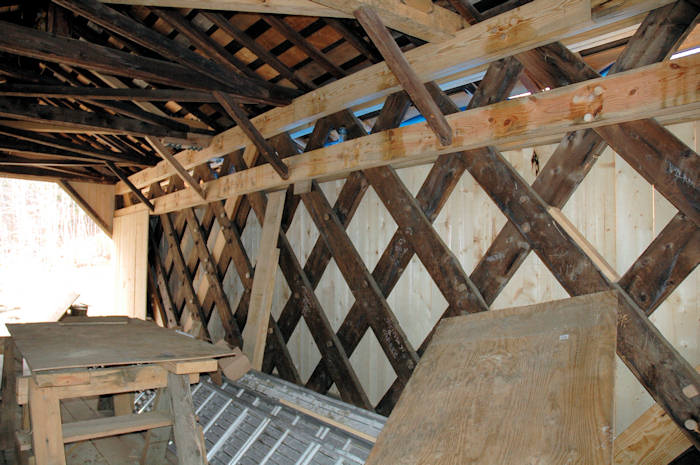

Toward the North end of the west truss.

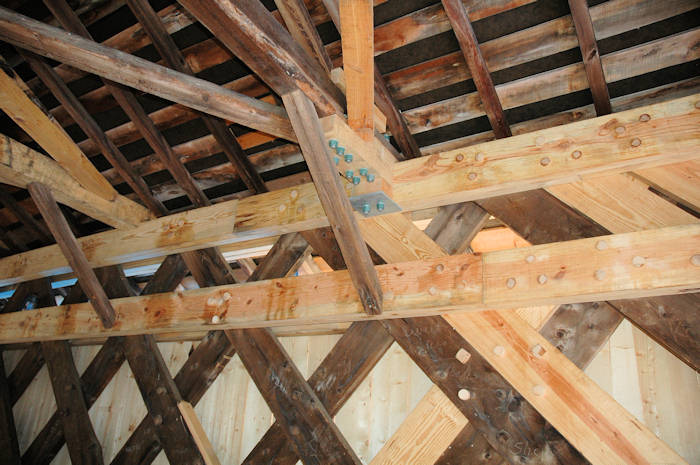

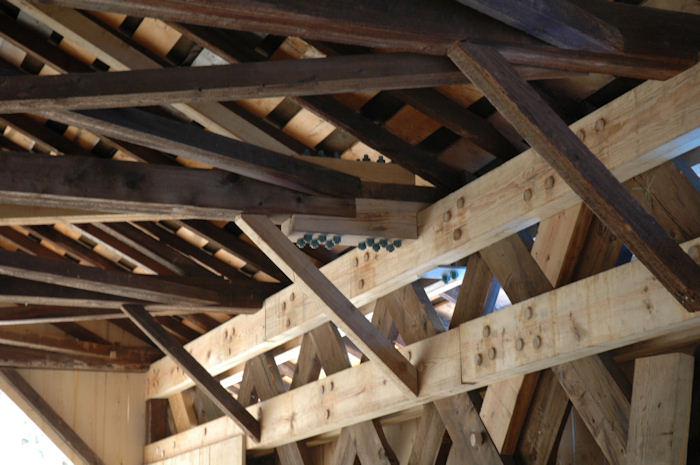

The new tie beam and cross beam members.

West truss toward south end.

To keep an original tie beam, the rotted ends are spliced.

A side view of the spliced tie beam end.
