Jeffersonville, August 23, 2004 - The multi-layered bridge roadway is being reassembled using the original design. The 8" x 8" floorbeams removed when the bridge was disassembled have been returned and re-spaced, with six new beams. The existing 6" x 6" stringers were placed on the floorbeams and new 3" x 10" transverse sub-floor planks spaced on these. New 3" x 8" longitudinal deck planks protected by new 3" x 8" oak running planks complete the new floor. The distribution beams (or "hanging beams") installed under the bridge in the 1970s will not be replaced.

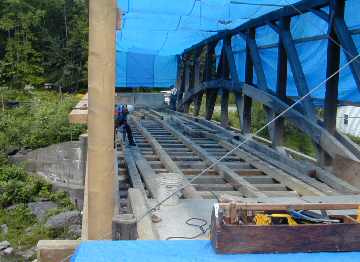

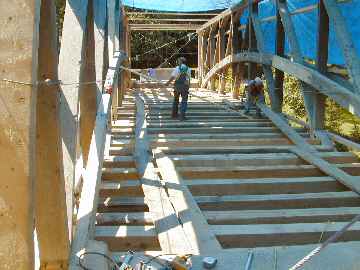

The floorbeams have been laid and spaced. Photo by Joe Nelson, August 9, 2004	The deck stringers are being laid out atop the floorbeams. Photo by Joe Nelson, August 16, 2004

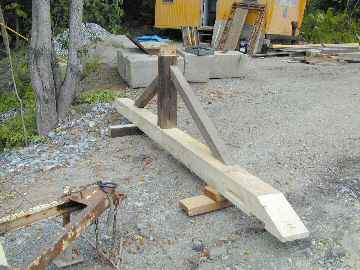

The transverse sub-floor planks have been placed and spaced. The longitudinal deck planks are being lag bolted to the sub-floor. Photo by Joe Nelson, August 23, 2004	One of the three roof beams (tie beams) that needed to be renewed. The roof system will be reinstalled next. Photo by Joe Nelson, August 23, 2004
